The Prototype (3)

Hi all,

thanks for your feedback. Seems my little trick for the shells is considered valuable ;)

@ Atreides127 - it's a 1/35 Sherman (Tamiya 35190 M4 Sherman 1 : 35), they are a tad too big for standard WH40K, but the 1:48 kits are definitely too small.

Since the last update I worked on the auto-loading mechanism. It makes no sense to have such a low profile gun arrangement, if you can't get any shells in, right?

So here is the lifting mechanism, that will push the shell up into the breech.



With a shell in the lower position,



 and a bit up - since it's not glued in position it kept sliding down while shooting the photo :)

Since I don't want a loader to slam a round into the lift as each round is fired (which would also require the turret to come back to the 12 o'clock position for each reload) I designed a small 4-shot magazine.

There should be two magazines - one on each side - to allow for two standard ammunition's.

And here you can see the "Kampfmittelanlage SKORPION"



Or rather the "Versuchswaffenträger XI mit Kampfmittelanlage SKORPION und Kampfraumverbesserung ODIN"

Sounds "official" enough, doesn't it?

Next I assembled all the little tools and gadgets that were included in the Tamiya "WWII German Tank Crew Field Maintenance Set" 1:48.

Lots of ammo crates, a table, a ladder, some tool boxes, and some tools.



And then I started to assemble them into the scene.



Remember, that I'm trying to get a " Third Reich/Iron Sky flair and a sprinkle of WH40K. I envision an underground research facility, looking a bit like an old U-Boot bunker, a "prototype" in the center, with soldiers and researchers around it, while a group of officers take the "dog-and-pony-show".  "

The tank will be on an elevated part of the facility - most likely with some tracks running on the ground and lots of concrete.



The right end of the scene will be closed by a huge blast door, sealing the facility from the environment (but a little man-door on the side).



And to give it some feeling of thickness I added some support beams.

Maybe I'll add a running crane to these support beams.

Since the Styrofoam doesn't really represent concrete any good, I casted some plates to simulate pre-casted concrete sections.

I like the concrete effect.

So, this is as far as I got.

What do you think?

I look forward to your C&C.

Cheers

Klaus

The Prototype (2)

Hi all,

very little progress as time is still fleeting, but an update nevertheless.

 I added some recoil dampeners and a breech mechanism to the gun.



And I built a "sight" for the gunner. Since it is a prototype still in research and testing, the sight box is open, as a technician can access it.



Next I looked into a more independent sight for the commander, using the design I used on the POLEMOS Urban Attack Vehicle.





Here you can see the mounted gunner sight.





But what about the commander sight?



Is that looking OK? Or should I find a better position?



Any ideas?

Since I want to add an auto-loader mechanism that may be visible I created some ammunition.



For this I put a section of plastic card rod into my drill

And then run it first across a rasp

and then over some sandpaper.

And with a little practice I get these nice shells :)



With the idea to cast some more....











After the first test cast for the ammo was successful I added some "Dencara-style" lights to the former Sherman,



added some details to the engine and added first rivets.



And this is how the little low profile tank hunter looks as of today.

So what do you think, anything major still missing?
What about the commander sight?

I look forward to your C&C.

Cheers

Klaus

The Prototype (1)

Hi all,

Sorry for the lack of posts.

Unfortunately work keeps me very busy, and despite the weather being exceptionally good for March here in Germany I had no chance of priming the Pollux and Castor diorama - lack of daylight.

But I didn't want to idle and lose my hobby drive and while lurking on the various forums I decided to participate in the SMA Spring Contest ( http://www.scalemodeladdict.com/SMF/index.php/topic,10830.0.html ).

It is a "fight for honor" contest (so no prices) and the topic is "Prototypes". One can participate in various categories and the competition is very challenging.

My idea is to create a scene with a very distinct Third Reich/Iron Sky flair and a sprinkle of WH40K. I envision an underground research facility, looking a bit like an old U-Boot bunker, a "prototype" in the center, with soldiers and researchers around it, while a group of officers take the "dog-and-pony-show" :)

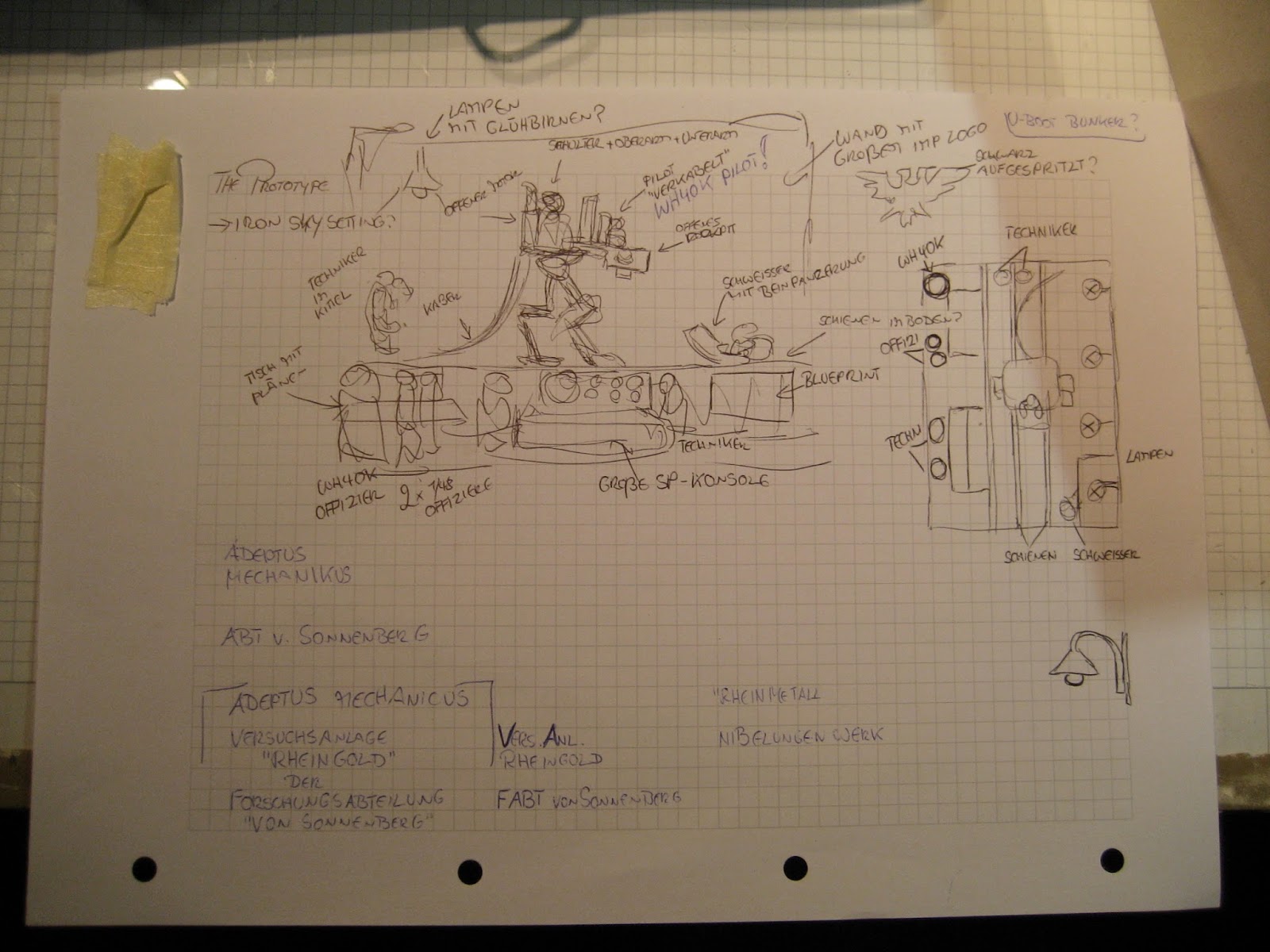

In this early sketch you can see that I intended to use a bare-skeleton Pollux walker (without the weapons and armor) with an open cockpit, so one can see the "wired-in" pilot, and a whole bunch of people around it.

In addition to my usual WH40K soldiers I decided to use some 1:48 Tamiya WWII German soldiers for this scene. They are a mis-purchase, as they usually don't fit the WH40K figures.

But for this I can mix the two, as the prototype is either built on a special planet, where the inhabitants are slimmer, or if on Dencara, these guys are from a different race with a different build, while the "real soldiers" are of the sturdy, bulky type.

Fluff for the win :)

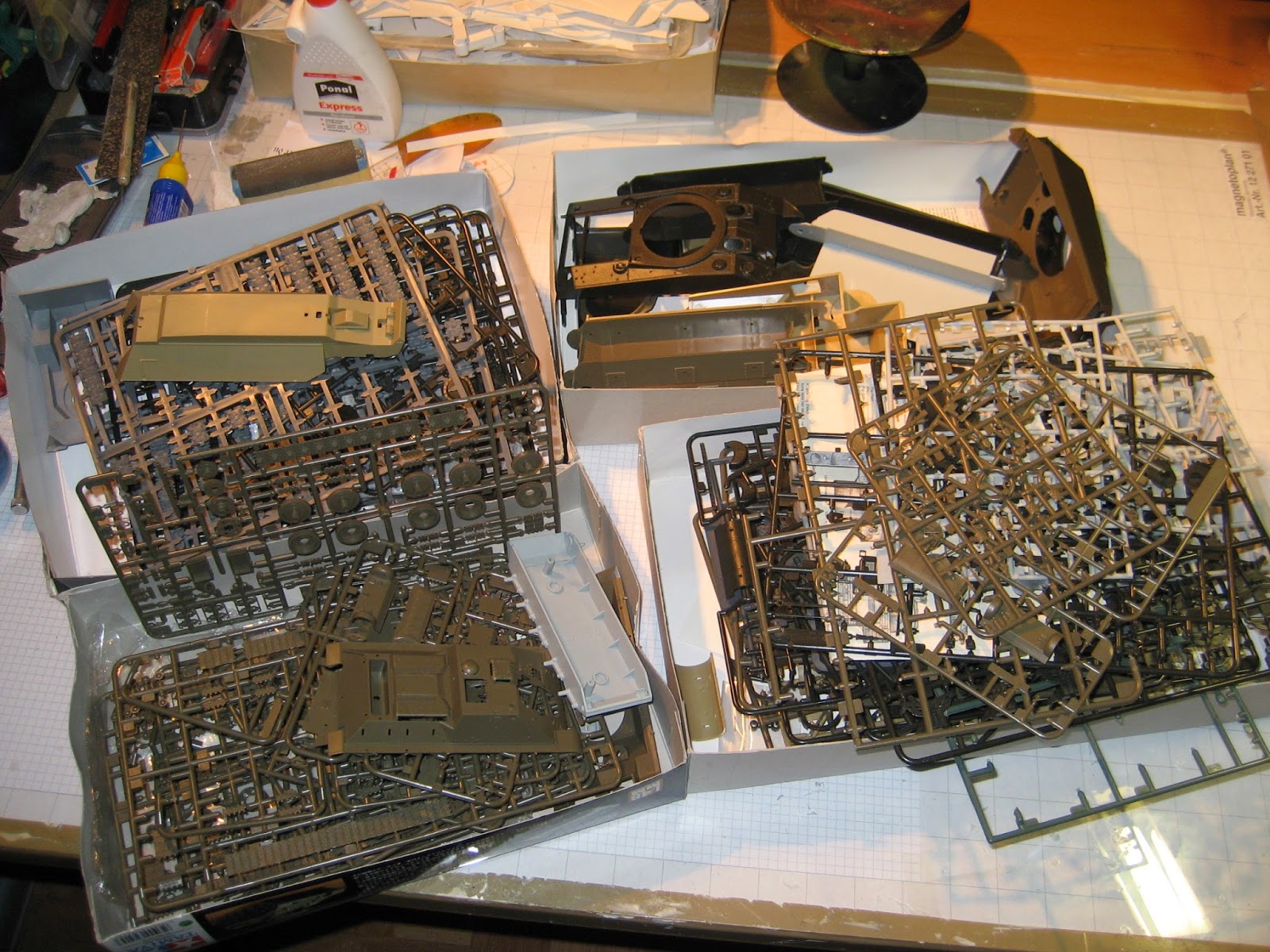

But the more I thought about it the less I liked the idea to use another Pollux-pattern walker. And looking through my closet (I'm a real "messy" when it comes to hobby parts) I came across these Sherman and Lee boxes I purchased on e-Bay - solely for the purpose of salvaging the road wheels.



So why not build a prototype based on a Sherman?
This way I have the option to enter in the armor, Sci-fy, and diorama categories (if I can afford it that is).



Decision made, I opted for this Sherman hull.



I quickly shaved off the deck, to make room for some modifications.



Since the prototype will be mostly without hatches (open) I also added some side walls to the lower hull.



Then I cut out the new openings for the turret and the crew hatches.

The rear central hatch is for the commander, left for the loader, right for the gunner.



Then I worked on the gun.

Since it's still a prototype, most of the armor and covers are missing and many pieces be visible.

So I added a movable breech - the breech opens downwards, so there will be a auto loader from inside the vehicle.





This is how the gun looks in comparison to the hull.



Next I worked on the actual gun mount



and it's position on the vehicle.



To compensate for the recoil I added a set of rails on which the gun mount can move - I'm not sure if I'll add visible dampeners....



I'm still undecided if I mount the rails forward like this



or rather rearwards (gun mount aligns with the front of the turret base, or the rails align with the rear)



The whole gun mount on the vehicle.

As you can see I aim for a low silhouette and great depression (so the gun can fire from the backside of a hill).



I also added some modifications to the rear - with a section of the engine being visible.



Most likely I will also keep the actual engine deck open, so a section of the engine may be visible.

But I'll decide on this later, so no details added yet.



Finally I added most of the running gear last night.

This will be pretty much out of the box.



I also added a WH40K Imperial Guard driver (sans the head so far).



And this is how the vehicle looks so far.



 What do you think?

I have no name for this baby yet, but I think I will break with the Greek Deity tradition and use a more mundane naming approach.

Any suggestions?

I hope you like today's update and I look forward to your comments and feedback.

Cheers

Klaus
